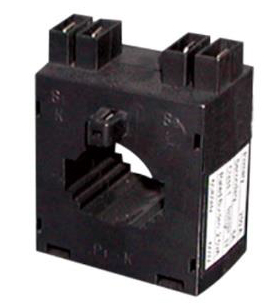

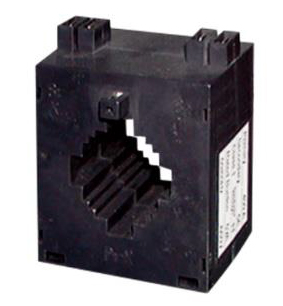

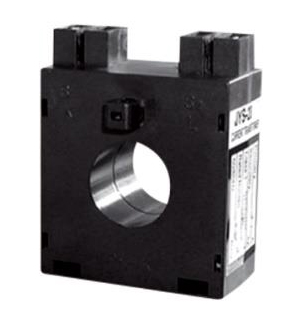

JYS Series Current Transformers

Short Description:

ModelDIMENSIONS (mm)ABCDEJYS-205328576654JYS-305328576654JYS-407146728170ModelRa


  • Frequency Range: 50Hz-60Hz
  • Rated Power-Frequency Withstand Voltage (rms): 3kV AC (1 min)
  • Highest voltage for equipment: 0.72kV AC
  • Rated short-time thermal current(lth): 60ln
  • Rated dynamic current(ldyn): 2.5lth
  • Continuous overload: 1.2ln
  • Operating temperature: -20°C to 75°C
  • Rated security coefficient: 2.5lth
  • Standard: IEC 61869-2
down load to pdf

Details

Tags

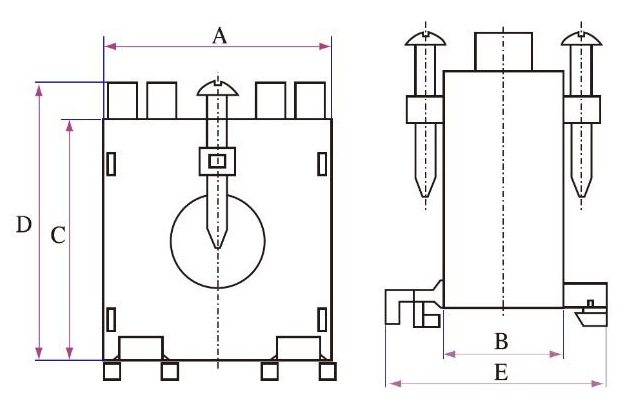

Model

DIMENSIONS (mm)

A

B

C

D

E

JYS-20

53

28

57

66

54

JYS-30

53

28

57

66

54

JYS-40

71

46

72

81

70


Model

Ratio(A)

Burden(VA)

Accuracy

JYS-20

50/5-150/5

1.5-2.55

3.0, 1.0, 0.5

JYS-30

200/5-600/5

2.5-3

1.0, 0.5

JYS-40

150/5-800/5

2.5-5

1.0, 0.5
