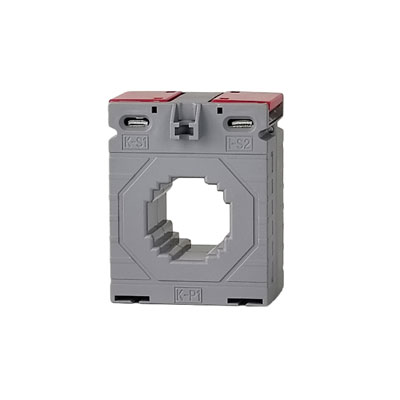

CP62/30 Series Current Transformers

Short Description:

This CP series current transformer has 12 models totally The product .structure is compact the size is smaller than other series the flip open cover can protect the secondary terminal well It is equipped with necessary .


  • Frequency Range: 50Hz-60Hz
  • Rated Power-Frequency Withstand Voltage (rms): 3kV AC (1 min)
  • Highest voltage for equipment: 0.72kV AC
  • Rated short-time thermal current(lth): 60ln
  • Rated dynamic current(ldyn): 2.5lth
  • Continuous overload: 1.2ln
  • Operating temperature: -20°C to 75°C
  • Rated security coefficient: 2.5lth
  • Standard: IEC 61869-2
down load to pdf

Details

Tags



Model

Primary

Secondry

Primary Circles

Rated Burden(VA)

Class 1.0

Class 0.5

1.5

2.5

5

1.5

2.5

5

CP62/30

50A-80A

1A、5A

2

A1

-

-

-

-

-

100A

1A、5A

1

B1

B2

-

-

-

-

150A

1A、5A

1

C1

C2

-

C4

C5

-

160A

1A、5A

1

D1

D2

-

D4

D5

-

200A

1A、5A

1

E1

E2

-

E4

E5

-

250A

1A、5A

1

F1

F2

-

F4

F5

-

300A

1A、5A

1

G1

G2

G3

G4

G5

G6

400A

1A、5A

1

H1

H2

H3

H4

H5

H6
