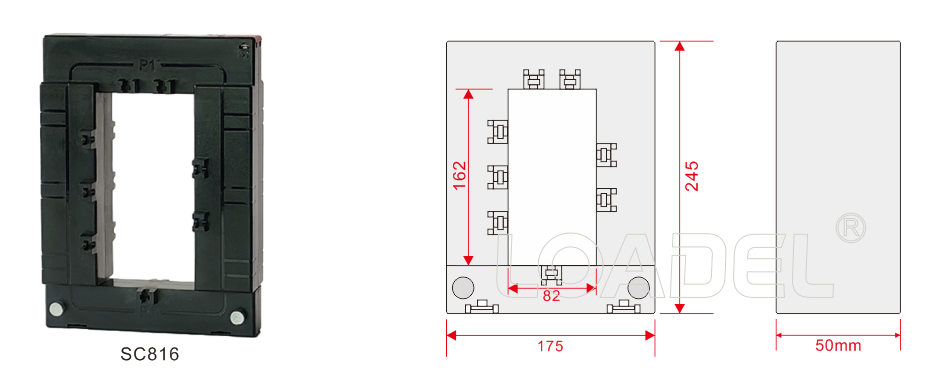

SC816 Split Core Current Transformers

Short Description:

ModelPrimarySecondryRated Burden(AV)Class 1.0Class 0.557.51015202557.510152025SC

Frequency Range: 50Hz-60Hz
Rated Power-Frequency Withstand Voltage (rms): 3kV AC (1 min)
Highest voltage for equipment: 0.72kV AC
Rated short-time thermal current(lth): 60ln
Rated dynamic current(ldyn): 2.5lth
Continuous overload: 1.2ln
Operating temperature: -20°C to 75°C
Rated security coefficient: FS<5
Standard: IEC 61869-2

CONTACT NOW down load to pdf

Details

Tags

Model

Primary

Secondry

Rated Burden(VA)

Class 1.0

Class 0.5

5

7.5

10

15

20

25

5

7.5

10

15

20

25

SC816

1000A

1A、5A

A1

A2

A3

–

–

–

A7

–

–

–

–

–

1500A

1A、5A

B1

B2

B3

–

–

–

B7

B8

–

–

–

–

2000A

1A、5A

C1

C2

C3

C4

–

–

C7

C8

C9

–

–

–

2500A

1A、5A

D1

D2

D3

D4

D5

–

D7

D8

D9

D10

–

–

3000A

1A、5A

E1

E2

E3

E4

E5

E6

E7

E8

E9

E10

E11

–

4000A

1A、5A

F1

F2

F3

F4

F5

F6

F7

F8

F9

F10

F11

–

5000A

1A、5A

G1

G2

G3

G4

G5

G6

G7

G8

G9

G10

G11

–

6000A

1A、5A

H1

H2

H3

H4

H5

H6

H7

H8

H9

H10

H11

–
