CP62/WS Series Current Transformers

Short Description:

This CP series current transformer has 12 models totally The product .structure is compact the size is smaller than other series the flip open cover can protect the secondary terminal well It is equipped with necessary .


  • Frequency Range: 50Hz-60Hz
  • Rated Power-Frequency Withstand Voltage (rms): 3kV AC (1 min)
  • Highest voltage for equipment: 0.72kV AC
  • Rated short-time thermal current(lth): 60ln
  • Rated dynamic current(ldyn): 2.5lth
  • Continuous overload: 1.2ln
  • Operating temperature: -20°C to 75°C
  • Rated security coefficient: 2.5lth
  • Standard: IEC 61869-2

Details

Tags

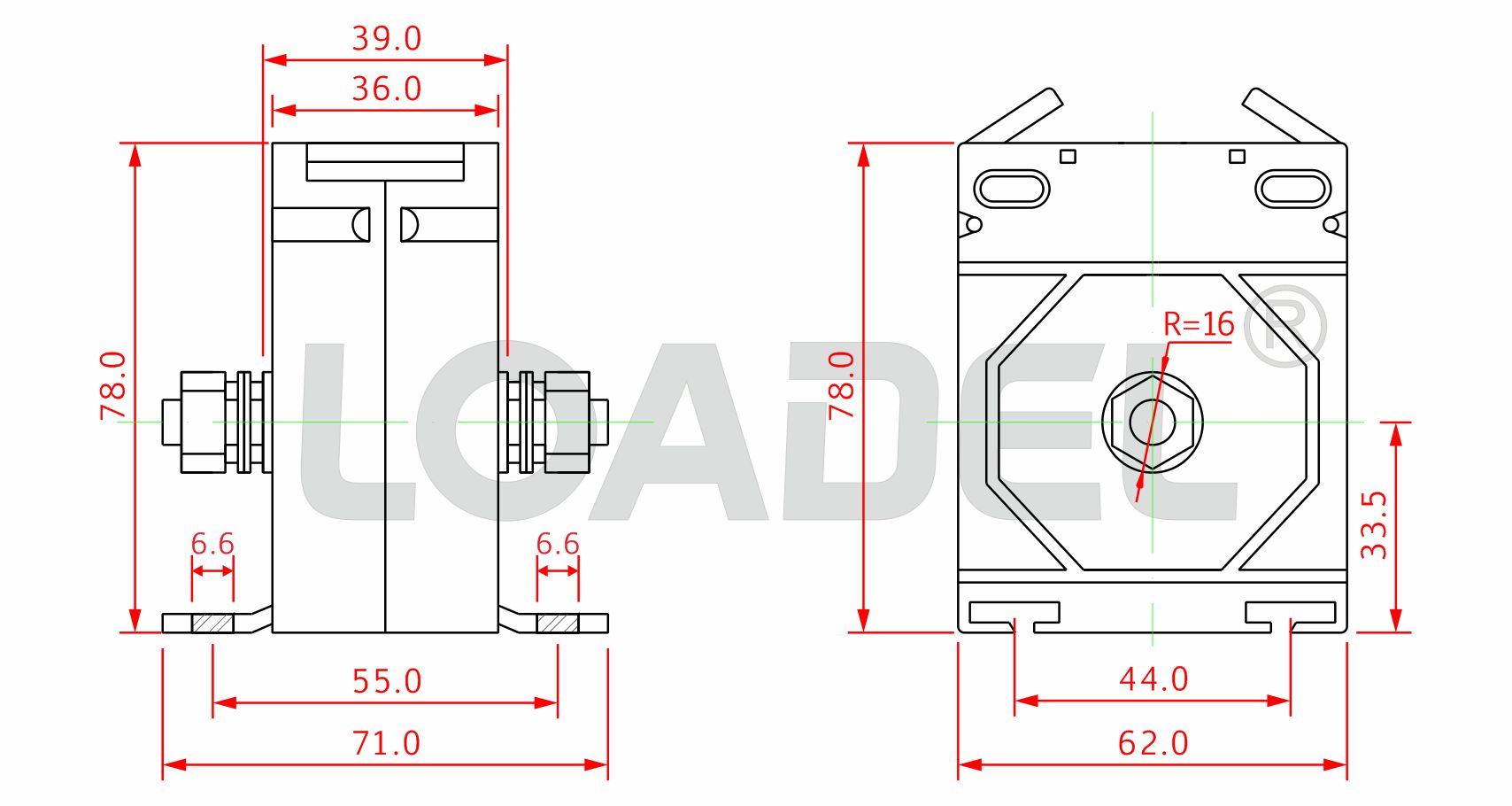

Outline Installation Dimensional Drawing



Model

Primary

Secondry

Rated Burden(VA)

Class 1.0

Class 0.5

1.5

2.5

5

1.5

2.5

5

CP62/WS

5A-80A

5A

A1

A2

A3

A4

A5

A6

5A-100A

1A

B1

-

-

B4

-

-
