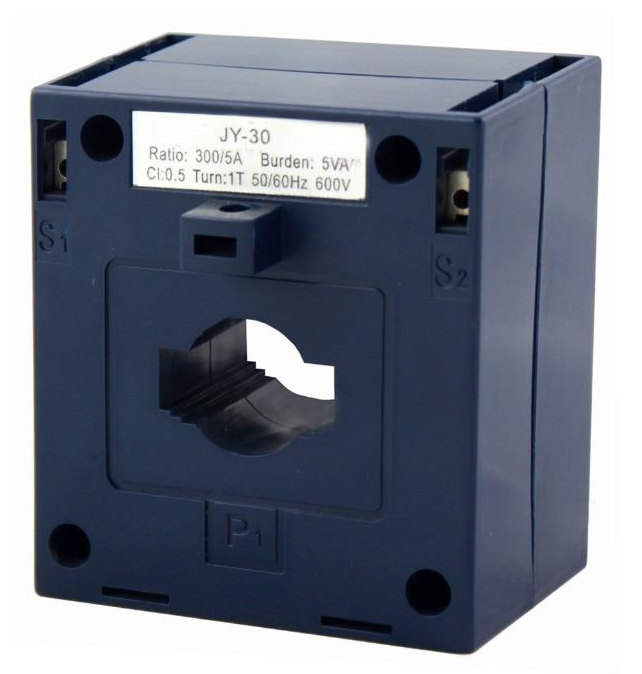

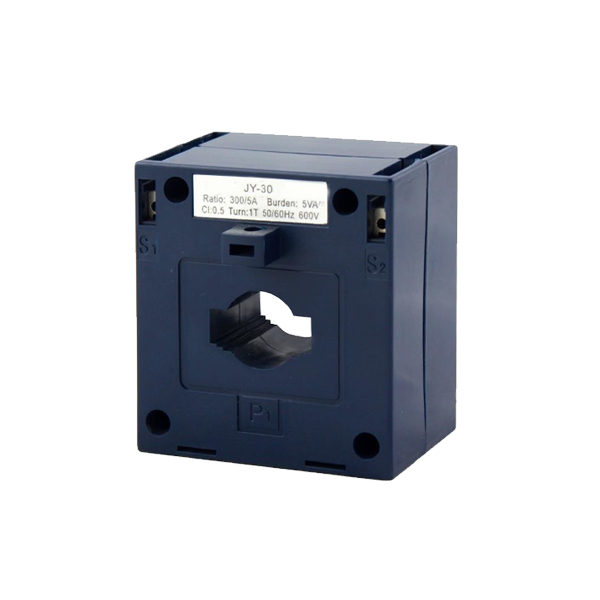

JY Series Current Transformers

Short Description:

ModelDIMENSIONS (mm)ABCDJY-3079428766JY-4079428766JY-601034211366JY-100151461667


  • Frequency Range: 50Hz-60Hz
  • Rated Power-Frequency Withstand Voltage (rms): 3kV AC (1 min)
  • Highest voltage for equipment: 0.72kV AC
  • Rated short-time thermal current(lth): 60ln
  • Rated dynamic current(ldyn): 2.5lth
  • Continuous overload: 1.2ln
  • Operating temperature: -20°C to 75°C
  • Rated security coefficient: 2.5lth
  • Standard: IEC 61869-2

Details

Tags

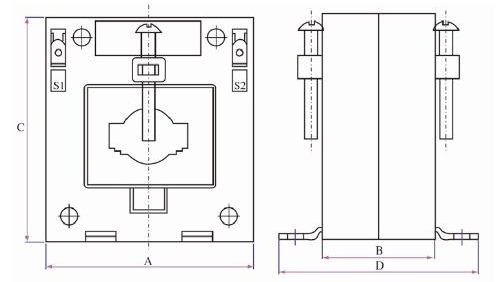

Model

DIMENSIONS (mm)

A

B

C

D

JY-30

79

42

87

66

JY-40

79

42

87

66

JY-60

103

42

113

66

JY-100

151

46

166

70

JY-130

196

46

219

70

Model

Ratio(A)

Burden(VA)

Accuracy

JY-30

30/5-300/5

1.5-5

3.0, 1.0, 0.5

JY-40

150/5-800/5

5-10

3.0, 1.0, 0.5

JY-60

400/5-1200/5

10

3.0, 1.0, 0.5

JY-100

800/5-3000/5

15

3.0, 1.0, 0.5

JY-130

1000/5-5000/5

10-25

3.0, 1.0, 0.5
