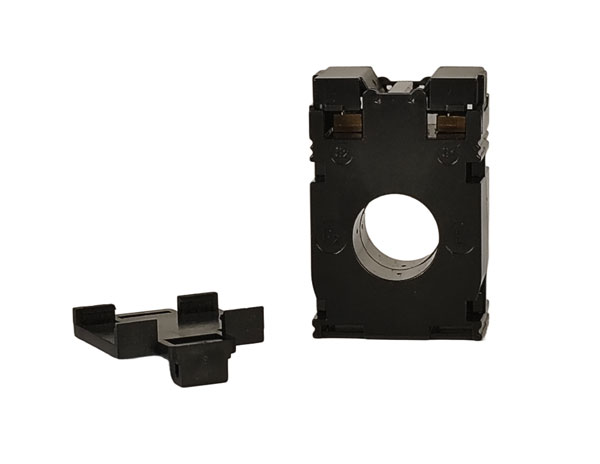

The AF series current transformer is a mini type current transformer. Miniature size and convenient installation make it is widely used in the generators.

Feature

.Two mounting ways: DIN rail, busbar

.Built-in flip-open cover

.Compact design

.Rated primary current from 5A to 300A

Specification

.Rated frequency: 50/60Hz

.Rated withstand voltage: 3kV AC (1min)

.Rated thermal current (Ith): 60In

.Dynamic stable current: 2.5Ith

.Rated voltage (Um): 0.72kV AC

.Continuous overload (Id): 1.2In

.Operating temperature:  -10℃~50℃

.Flame retardant rating of housing:  VO

.Safety factor: FS 5

.Secondary current: 5A/1A

Standard

IEC61869-1:2007  IEC61869-2:2012  GB/T20840.1-2010  GB/T20840.2-2014
