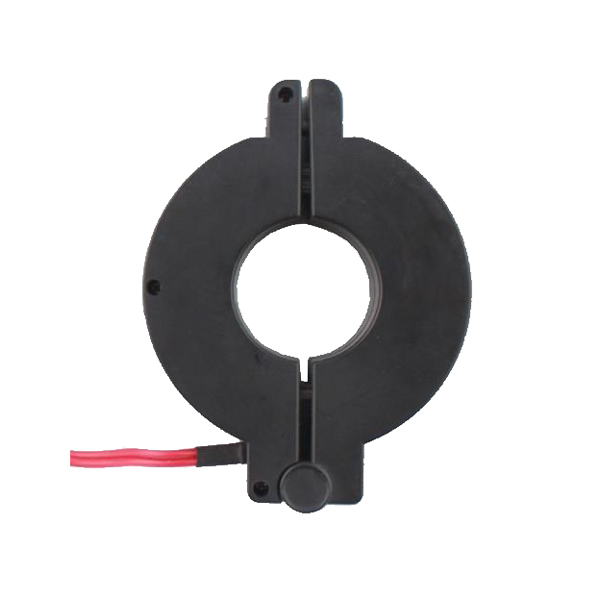

GP Series Split Core Current Transformers

Short Description:

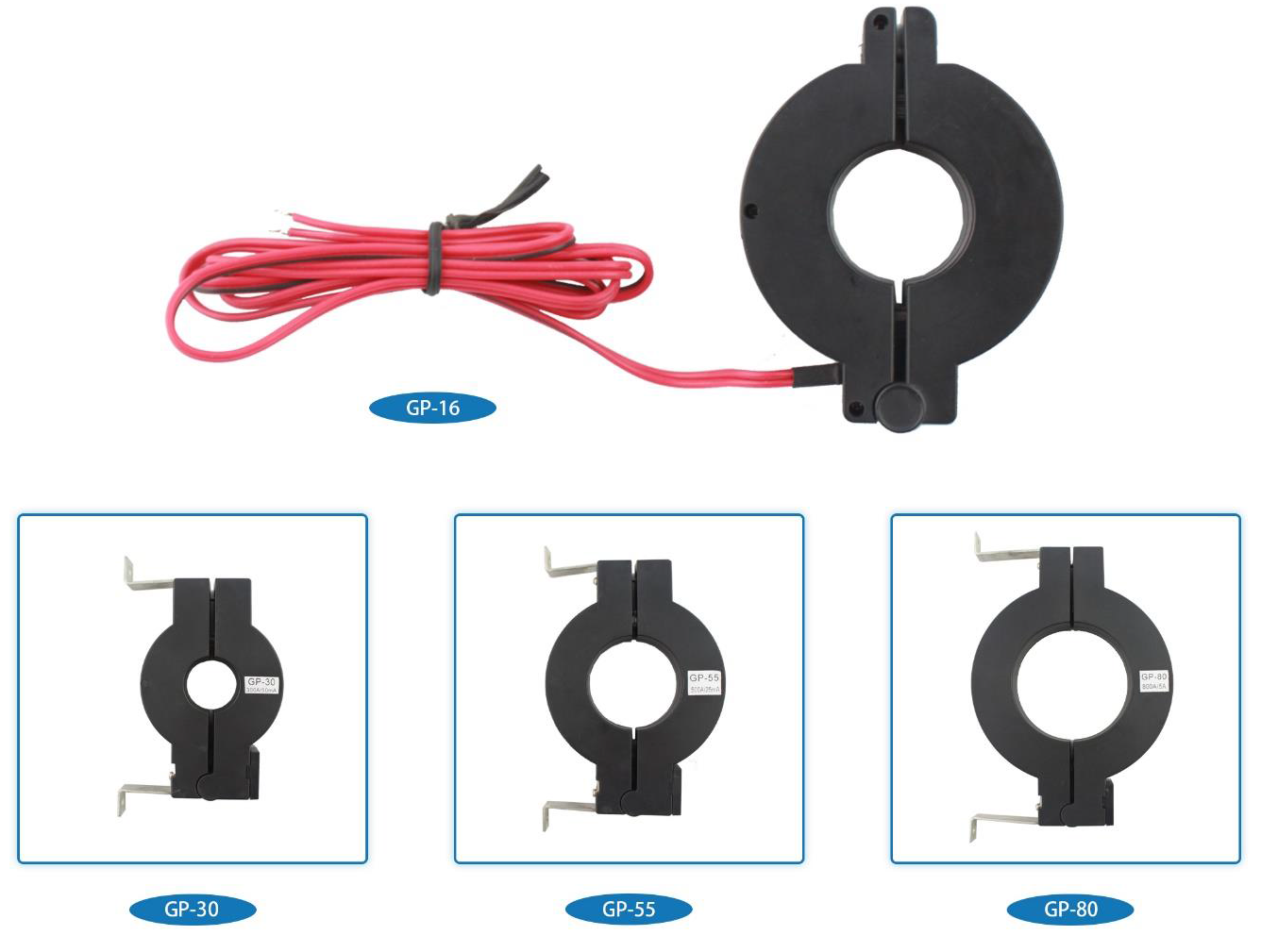

GP-16,GP-25,GP-30,GP-55,GP-80


  • Frequency Range: 50Hz-60Hz
  • Rated Power-Frequency Withstand Voltage (rms): 3kV AC (1 min)
  • Highest voltage for equipment: 0.72kV AC
  • Rated short-time thermal current(lth): 60ln
  • Rated dynamic current(ldyn): 2.5lth
  • Continuous overload: 1.2ln
  • Operating temperature: -15°C to 50°C
  • Rated security coefficient: FS<5
  • Standard: IEC 61869-2

Details

Tags





Model

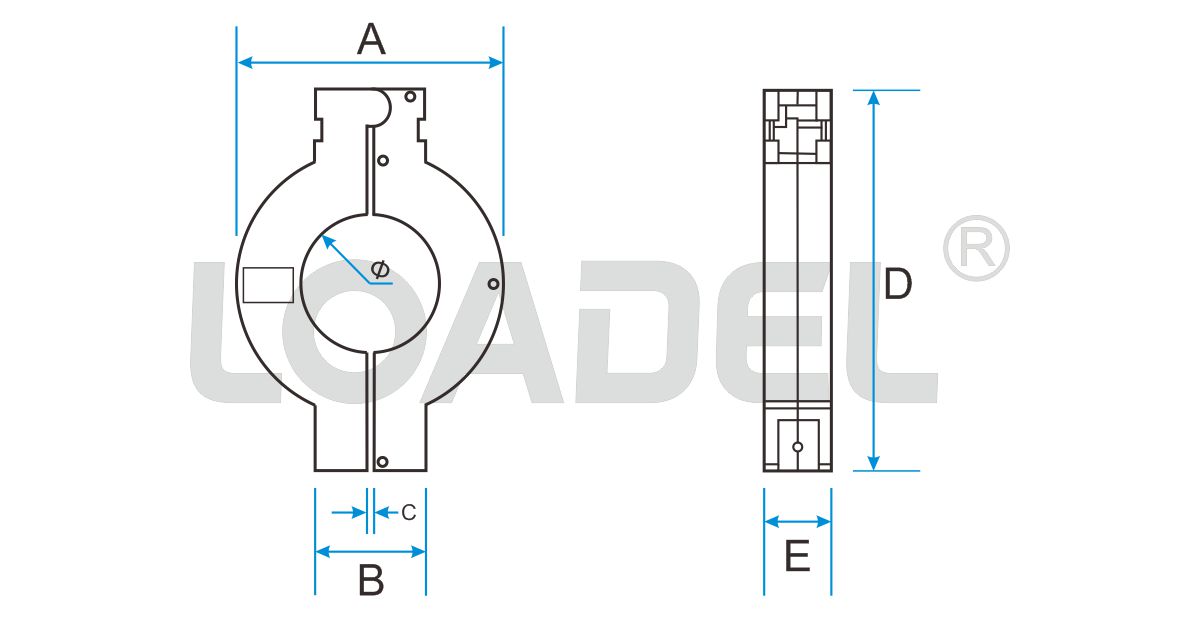

DIMENSIONS (mm)

φ

A

B

C

D

E

GP-16

16

38.5

14

2

55

18.5

GP-25

25

57

14

2

75.5

20.5

GP-30

30

83

45

2

129

28

GP-55

55

108

45

2

154

28

GP-80

80

137

45

2

192

28


Model

Input

Output

Accuracy

GP-16

5A~100A

0~50mA/0.333V

3.0, 1.0, 0.5

GP-25

20A~200A

0~100mA/0.333V

3.0, 1.0, 0.5

GP-30

200A~500A

5A/1A

3.0, 1.0, 0.5

50~500mA/0.333

3.0, 1.0, 0.5

GP-55

250A~1000A

5A/1A

3.0, 1.0, 0.5

50~500mA/0.333

3.0, 1.0, 0.5

GP-80

500A~2000A

5A/1A

3.0, 1.0, 0.5

50~500mA/0.333

3.0, 1.0, 0.5
